BMM Engineer manufactures Storage Tanks / vessels for the Pharma and Chemical Industries ranges from 1 KL to 350 KL capacity.

Storage Tank is designed for Mechanical / Process Chemical as perlS-2825/ASME Section-Mil Div. -1 / API 650/IS 803.

The main application of the tank is in Pharmaceuticals, Fine Chemicals, Petro-Chemicals, Dyes and Intermediates, Fertilizers, Refineries, Dairies and Food Product Industries.

Many times, inside the storage tank lining. Coating and bonding are done with PFA/TEFZEL/ Halar/ Rubber/ FRP / Lead / Brick / SS Cladding etc.

Design Standards

ASME SEC VIII DIV 1
IBR/ISO 931
API 650

IS 10987/PESO
IS-2825
IS-803

Type of Testing

DP Test
Radiography
Ultrasonic Testing

Vacuum Box Test of Bottom
Hydro Test
Pneumatic Test

Capacity: 0.1 KL to 350 KL
Process Parameters: Measured/Performed by Manhole/Nozzles.
Lining / Coating: PFA / TEFZEL / Halar / Rubber/FRP/Lead/HDPE

Metallurgy

Different Grades of Stainless Steel (SS304/SS316/SS316L/SS316Ti/SS317/SS321/SS904L)
Duplex and Super Duplex Stainless Steel
Hastelloy-C(C22/C276)
Titanium
Monel400
Carbon Steel (CS/LTCS)
Clad Material

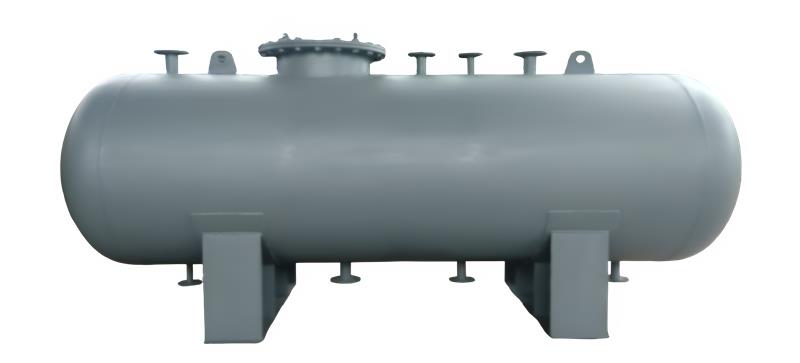

Process Storage Tank
